For Medical

  • Nitinol Guide wires for Dental

Size :
Dia1.3*500
Dia 1.3*550mm
Dia1.5*580mm
Technical request: ASTMF2063+ Customer Drawing+ Special Marking demand

Notice : Besides the normal ASTM demand, Medical products have strict demand on surface,brightness(shining) ,dimensions and the detail of marking (marking space, size and parameter),we updated the relative production(electrical polishing) and testing process and purchased the New marking system.
We supply the qualified products in big mass finally.

  • Nitinol Sheets for Dental

Size :
0.4*60*150mm
0.3*50*100mm
Technical request: ASTMF2063+ AF   25℃ (+5/- 5)℃+ DSC certificate ( for temperature)

Notice:  In addition to the conventional super-elastic and memory requirements, more stringent requirements are placed on temperature and need DSC for each lots of products.
We choose the some special material for this work and update the heat treatment process, so that all finished goods qualified.

  • Medical wires ( for Orthopedics)

Size : Dia1.2*580mm
Dia1.5*590mm
Dia30*1000mm
Technical request: ASTMF2063

Notice: For orthopedics,the diameter is always bigger and longer , we organize production with technical requirements stricter than the order, and finally deliver one week in advance.

  • Nitinol Wires for Dental (  Endodontic files)

Size: Dia1.2mm*2000mm
Dia1.3mm*2000mm
Technical request: ASTMF2063

Notice : For this application, mostly is wire in coil and  after confirmed with customer,we change the relative production methold and finial offer the products with top quality.

For Beauty jewelry

Wires in coil
The size:
Dia0.25mm  Dia0.8mm  Dia1.0mm  Dia1.2mm  Dia1.5mm   Dia1.8mm

Sheets
The size:
0.5*200*500
0.25*300*600
0.3*200*500
1.0*500*800

Technical request:  ASTMF2063+ need a straight annealed wire because we intend to shape set the wire, we need a wire in hard condition.
After our heat treatment during the shape set will provide the super-elastic properties and the shape that we are looking.

Notice: since the special demand,we did not the do the heat treatment and annealing, but do the similar process ,so that the hardness and tensional strength of nitinol material meets demand, so that make the customer future maching work easier and faster. Now we are offering those to make ring, necklace and earring
Nitinol jewelry is more popular in Europe and Middle East.

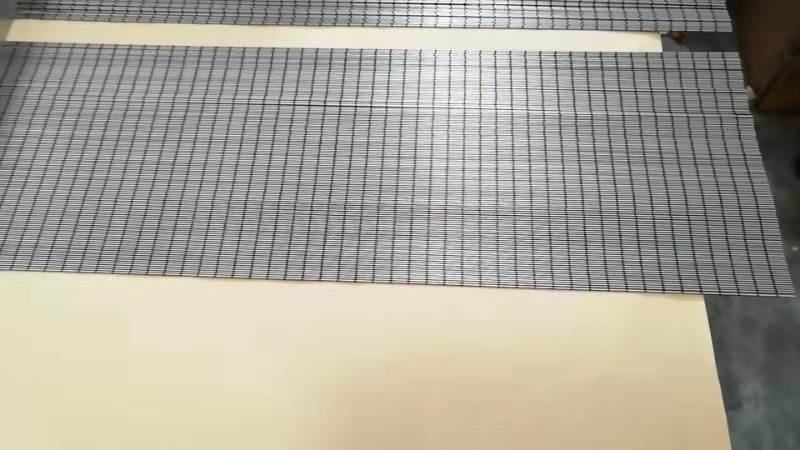

nitinol wire -xot metals-3

Nitinol components for Aerospace

The size :Custom drawing components
Technical request:  ASTMF2063+Special demand

Notice: This product is an aircraft radar component, and customers have special requirements for material and performance, especially high temperature resistance. Based on the domestic military supply experience, we adjusted the product heat treatment system and the final product state. After repeated experiments and proofing to the customer, the final product quality was confirmed by the customer and mass production

Nitinol Wires for Aerospace

The size: as the drawing from customer
Technical request :  wires with activation temperatures below 30°C and able to generate considerable pulling force (up to a few hundred N).

Notice: Customer still do the testing and consideration for this project and we offering different sizes for  customer to compare and  Proofreading design drawings
The final size and technical request will be confirmed soon

Nitinol wires for Power transmission

The size: Dia0.3mm* L
Technical demand: ASTMF2063+ AF >80°c

Notice:  High temperature Nitinol more popular in Power Industry ,the fist test sample always small quantity.
Since we already offering those wires to some projects, just work from our current raw materials and offer the qualified samples finally
Now we had win this annual order in Middle East Market

Other application

We offer the Nitinol wires to Fishing and Construction works , just contact us if relative information for reference.
