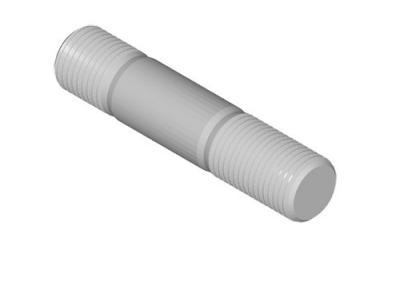

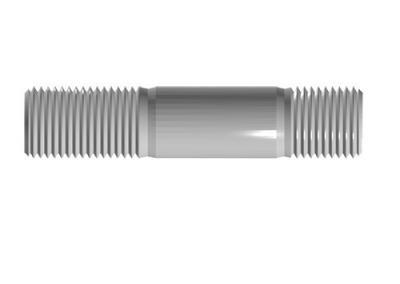

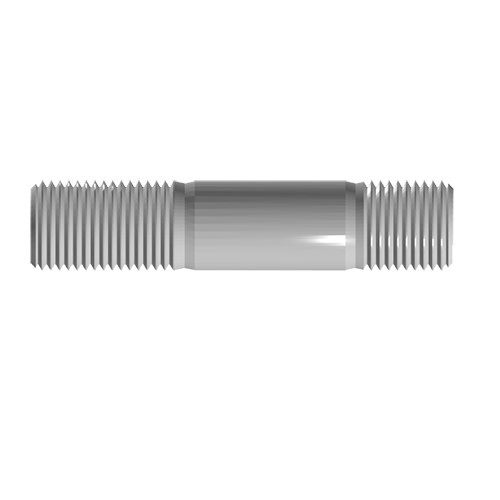

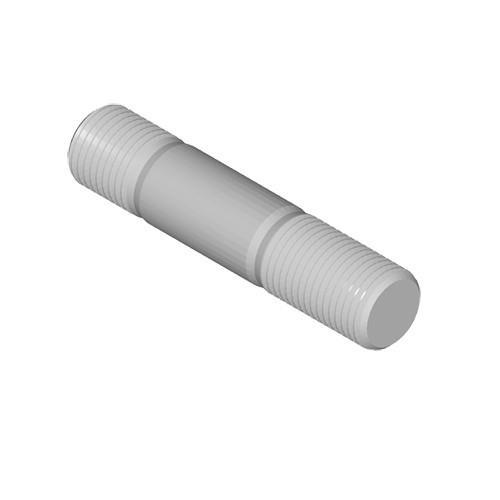

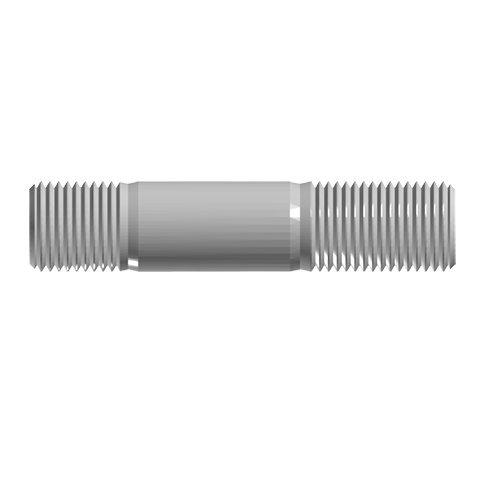

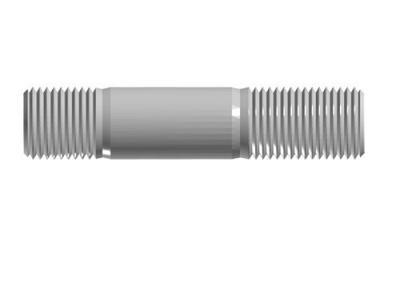

Titanium Stud DIN938-Double Ends
| DIN 938 - 2012 Studs - Metal End ≈ 1 d -Unit:mm | |||||
|---|---|---|---|---|---|
| d | p | b1 | b | ||
| L≤125 | 125≤L≤200 | L≥200 | |||
| M3 | 0.5 | 3 | 12 | 18 | / |
| M4 | 0.7 | 4 | 14 | 20 | / |
| M5 | 0.8 | 5 | 16 | 22 | / |
| M6 | 1 | 6 | 18 | 24 | / |
| M7 | 1 | 7 | 20 | 26 | / |
| M8 | 1/1.25 | 8 | 22 | 28 | / |
| M10 | 1.25/1.5 | 10 | 26 | 32 | 45 |
| M12 | 1.25/1.5/1.75 | 12 | 30 | 36 | 49 |
| M14 | 1.5/2 | 14 | 34 | 40 | 53 |
| M16 | 1.5/2 | 16 | 38 | 44 | 57 |
| M18 | 1.5/2.5 | 18 | 42 | 48 | 61 |
| M20 | 1.5/2.5 | 20 | 46 | 52 | 65 |
| M22 | 1.5/2.5 | 22 | 50 | 56 | 69 |
| M24 | 2/3 | 24 | 54 | 60 | 73 |
| M27 | 2/3 | 25 | 60 | 66 | 79 |
| M30 | 2/3.5 | 30 | 66 | 72 | 85 |
| M33 | 2/3.5 | 32 | 72 | 78 | 91 |
| M36 | 3/4 | 35 | 78 | 84 | 97 |
| M39 | 3/4 | 38 | 84 | 90 | 103 |
| M42 | 3/4.5 | 42 | 90 | 96 | 109 |
| M45 | 3/4.5 | 45 | 96 | 102 | 115 |
| M48 | 3/5 | 48 | 102 | 108 | 121 |
| M52 | 3/5 | 52 | 110 | 116 | 129 |
Material and Size
- Material: Titanium,Niobium,Tantalum ,Molybdenum and Tungsten
- Size: M3-M65, Length 10-1000mm
Specification
- DIN949 Titanium STUD BOLTS
- DIN938: Titanium Double End Studs
- DIN797: Titanium Special foundation bolts
- DIN7: Titanium Dowel Pins
Application
As China Leading Titanium Stud Fasteners and Corrosion Resistant Studs manufacturer, XOT Metals produce and stock Titanium Full Threaded Stud, half threaded Stud Bolts, Titanium Double End Studs, which used in Gas Pipeline system and Marine Project and Oil Equipment accessories and Shipbuilding components. The half-threaded Stud is important part for the heat exchanger and Reaction ball valve.
Advantage
- Aerospace Grade Titanium round bars as raw material
- Fast shipment: Within 7 days
- 100% Quality control throughout traceability
- 15 years’ Experience in manufacturing Titanium Bolts & Screws
- Technical Service: Your Titanium Expert with One Stop Solution
Customized
Non-standard and special size is available in Titanium ,Molybdenum,Tungsten,Niobium according to your drawing or requirement, for customization and tailor-made requirement, please click here for details. For Tantalum Stud and Nbti47 Stud Bolts, please Contact us for more details
