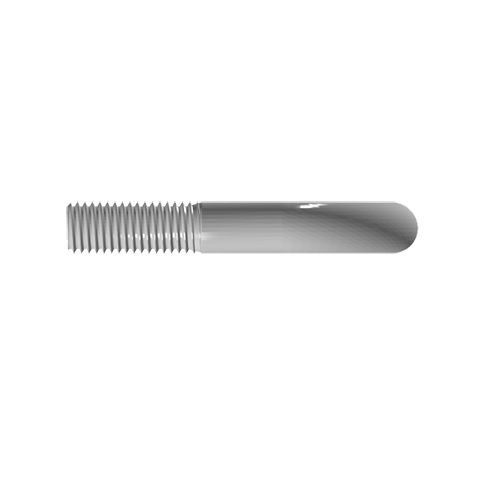

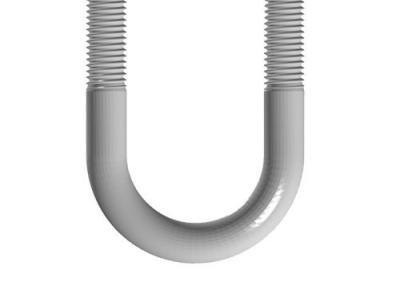

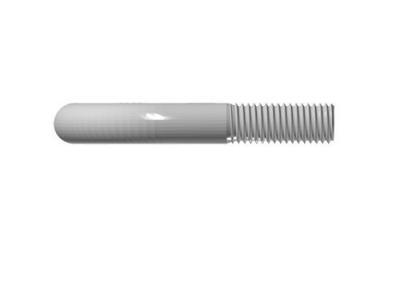

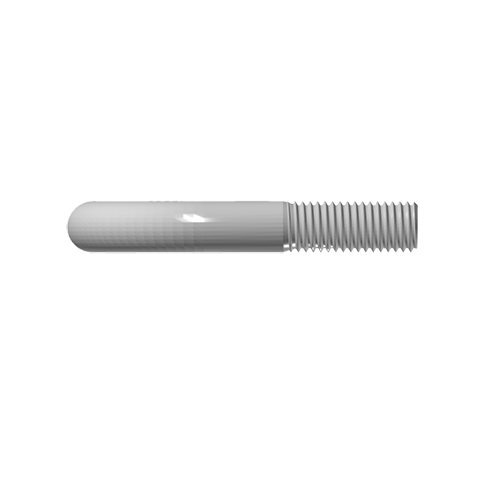

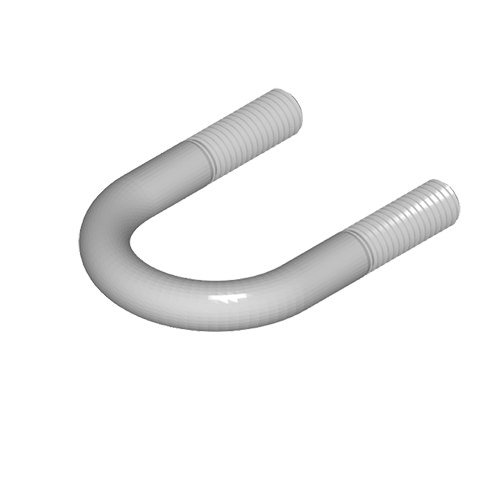

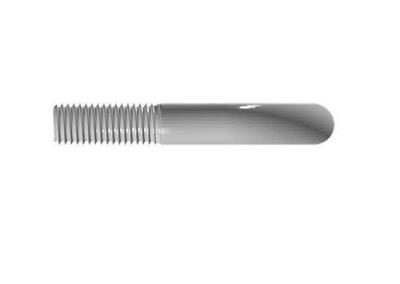

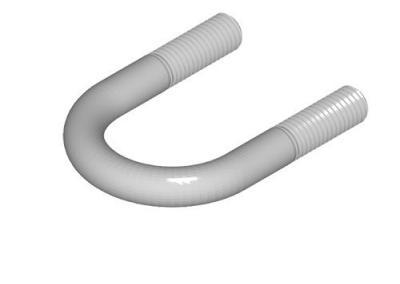

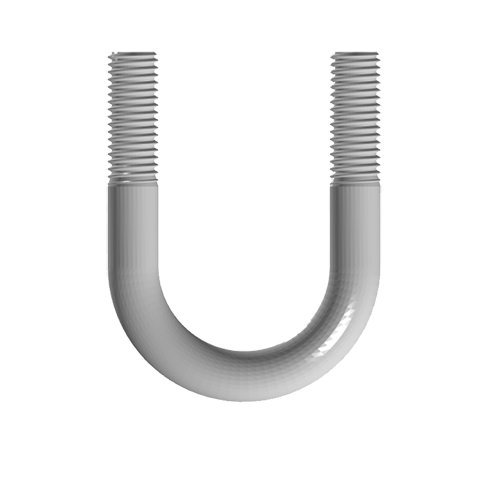

Titanium U Bolts DIN3570
| DIN 3570 - 1968 Steel Strap For Nomial Diameter 20 To 500 Tubes | ||||||
|---|---|---|---|---|---|---|
| Unit:mm | ||||||
| Tube diameter | d | ds | b | L | n | Quality of every 100 pieces of steel products≈kg |
| 25 | M10 | 10 | 40 | 70 | 40 | 9.4 |
| 26.9 | ||||||
| 30 | 76 | 48 | 10.5 | |||
| 33.7 | ||||||
| 38 | 50 | 86 | 56 | 12 | ||
| 42.4 | ||||||
| 44.5 | 92 | 62 | 12.9 | |||
| 48.3 | ||||||
| 57 | M12 | 12 | 109 | 76 | 22.2 | |
| 60.3 | ||||||
| 76.1 | 125 | 94 | 25.9 | |||
| 88.9 | 138 | 106 | 28.8 | |||
| 108 | M16 | 16 | 60 | 171 | 136 | 64 |
| 114.3 | ||||||
| 133 | 191 | 164 | 72.7 | |||
| 139.7 | ||||||
| Unit:mm | ||||||
| Tube diameter | d | ds | b | L | n | Quality of every 100 pieces of steel products≈kg |
| 159 | M16 | 16 | 60 | 217 | 192 | 83.4 |
| 168.3 | ||||||
| 191 | 249 | 218 | 95.8 | |||
| 193.7 | ||||||
| 216 | M20 | 20 | 70 | 283 | 248 | 169.8 |
| 219.1 | ||||||
| 267 | 334 | 302 | 202.8 | |||
| 273 | ||||||
| 318 | 385 | 352 | 235 | |||
| 323.9 | ||||||
| 355.6 | M24 | 24 | 435 | 402 | 382 | |
| 368 | ||||||
| 406.4 | 487 | 452 | 429 | |||
| 419 | ||||||
| 508 | 589 | 554 | 522 | |||
| 521 | ||||||
Material and Specification
- Material: Titanium,Niobium,Tantalum ,Molybdenum and Tungsten
- Specification: Titanium U Bolts DIN3570; Titanium U Bolts JIS2809
- Size: Diameter 8-25 mm for pipes up to 860mm in size
Application
Titanium U-bolts are manufactured from wire and round stock by cold or hot forming methods. U-bolts are sold out throughout industries, are available with saddle clamps, can be custom made as order specification. U bolts normally used for Antenna section secured, Wire cable, Automotive leaf spring and Power Plant. For Corrosion resistant, high strength, long service life, 60% Titanium U Bolts DIN3570 was used as piping supports in Chemical Industry and heavy equipment
Advantage
- Aerospace Grade Titanium round bars as raw material
- Fast shipment: Within 7 days
- 100% Quality control throughout traceability
- 15 years’ Experience in manufacturing Titanium Bolts & Screws
- Technical Service: Your Titanium Expert with One Stop Solution
Customized
Non-standard and special size is available in Titanium ,Molybdenum,Tungsten,Niobium according to your drawing or requirement, for customization and tailor-made requirement, please click here for details. For Tantalum U Bolts and Nbti47 Bolts, please Contact us for more details.
