Titanium Wing Bolts DIN318

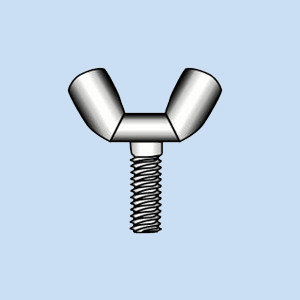

| DIN 318 - 1999 Wing screws with edged wings | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit:mm | ||||||||||||
| d | p | n | H | h1 min | k | dk | d2 | |||||
| max | min | max | min | max | min | max | min | max | min | |||
| M4 | 0.7 | 21 | 19 | 11 | 9 | 1.1 | 4.6 | 3.2 | 9 | 7 | 7 | 5.5 |
| M5 | 0.8 | 26.5 | 24.5 | 13 | 11 | 1.5 | 6 | 4 | 12 | 9 | 9 | 7.5 |
| M6 | 1 | 32 | 29 | 16 | 14 | 1.5 | 7 | 5 | 14 | 11 | 11 | 9 |
| M8 | 1.25 | 38 | 35 | 19 | 17 | 2 | 8.5 | 6.5 | 16 | 13 | 12.5 | 10.5 |
| M10 | 1.5 | 50 | 47 | 24 | 22 | 3.6 | 10 | 8 | 21 | 18 | 16 | 14 |
| M12 | 1 | 66 | 63 | 32 | 29 | 4.1 | 13 | 10 | 24 | 21 | 19 | 17 |
Grade and Speciation
- Grade:Titanium Gr1 ,Gr2 ,Gr5 ,Gr9

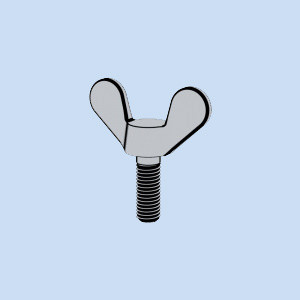

- Specification: Titanium Wing Bolts DIN316; Titanium Wing Bolts DIN318
- Size: M3-M65
Application
XOT Metals manufacture and provide Titanium Wing Bolts and Special Metal Wing Bolts , we also Stock Gr2 wing bolts in DIN 316,DIN 318, and Supply any type of Anti-corrosion Wing bolts in Niobium, Tantalum，molybdenum, Tungsten alloys metals
Titanium wing bolt is specially designed for hand twisting operation. The wing design of the head increases the lateral force receiving surface and makes the hand screwing more efficient. It is mainly used in the electronics industry, wind power industry, telecommunications, Aerospace, the automotive industry, etc. require equipment that requires both insulation and frequent dis-assembly and maintenance.
Advantage
- Aerospace Grade Titanium round bars as raw material
- Fast shipment: Within 7 days
- 100% Quality control throughout traceability
- 15 years’ Experience in manufacturing Titanium Bolts & Screws
- Technical Service: Your Titanium Expert with One Stop Solution
Customized
Non-standard and special size is available in Titanium ,Molybdenum,Tungsten,Niobium according to your drawing or requirement, for customization and tailor-made requirement, please click here for details. For Tantalum Wing Bolts and Nbti47 Screws, please Contact us for more details.
